Ion exchange resin regeneration process

The ion exchange resin regeneration process restores the resin’s ability to remove ions from water after it has become saturated with contaminants. This is typically done by using a specific regenerant solution, such as acid for cation exchange resins or a caustic solution for anion exchange resins. The regenerant solution is then flushed through the resin bed, reversing the ion exchange reaction and removing the accumulated ions.

Here’s a more detailed breakdown of the process:

Backwashing:

The resin bed is backwashed to remove any dirt or debris that may have accumulated during the service cycle.

Regeneration with Regenerant Solution:

A specific regenerant solution is used to reverse the ion exchange reaction and remove the accumulated ions from the resin.
- For cation exchange resins, a strong acid like hydrochloric acid (HCl) or sulfuric acid (H₂SO₄) is typically used.
- For anion exchange resins, a strong base like sodium hydroxide (NaOH) is typically used.
- The regenerant solution is passed through the resin bed to displace the contaminant ions and restore the resin’s ion exchange capacity.

Rinse:

The resin bed is rinsed with water to remove any residual regenerant solution or contaminants that may have been released during the regeneration process.
The rinse process ensures that the resin is ready for the next service cycle.

Air Mixing (Optional):

In some cases, the resin bed may be mixed with compressed air or nitrogen to enhance the removal of contaminants and ensure even regeneration.

Return to Service:

The regenerated resin bed is then returned to service and is ready to continue removing ions from the incoming water

Classifications of Ion Exchange Resins

Ionizable groups attached to the resin bead determine the functional capability of the resin. Industrial water treatment resins are classified into four basic categories:

Strong Acid Cation (SAC)
Weak Acid Cation (WAC)
Strong Base Anion (SBA)
Weak Base Anion (WBA)
- SAC resins can neutralize strong bases and convert neutral salts into their corresponding acids.
- SBA resins can neutralize strong acids and convert neutral salts into their corresponding bases. These resins are utilized in most softening and full demineralization applications.
- WAC and WBA resins are able to neutralize strong bases and acids, respectively. These resins are used for dealkalization, partial demineralization, or (in combination with strong resins) full demineralization.

Classifications of Ion Exchange Resins

Ionizable groups attached to the resin bead determine the functional capability of the resin. Industrial water treatment resins are classified into four basic categories:

Strong Acid Cation (SAC)
Weak Acid Cation (WAC)
Strong Base Anion (SBA)
Weak Base Anion (WBA)
- SAC resins can neutralize strong bases and convert neutral salts into their corresponding acids.
- SBA resins can neutralize strong acids and convert neutral salts into their corresponding bases. These resins are utilized in most softening and full demineralization applications.
- WAC and WBA resins are able to neutralize strong bases and acids, respectively. These resins are used for dealkalization, partial demineralization, or (in combination with strong resins) full demineralization.

Why we need to Replace Ion Exchange Resin:

· Exhaustion: The resin can no longer remove ions effectively.

· Fouling: Resins can be clogged or damaged by organic matter, iron, or biofilm.

· Degradation: Resin beads break down over time due to chemical or physical wear.

When to Replace:

Poor Quality or performance drop
High Pressure drop across the resin bed
Ineffective regeneration cycles
After a set lifespan (5-10 Years)

What is Ion Exchange Resin Replacement Process:

1. Preparation & Safety

Shut down the system: Turn off the water supply and isolate the unit (inlet/outlet valves).

Depressurize the unit: Relieve any pressure in the vessel to ensure safe removal.

Wear PPE: Use gloves, goggles, and any other required safety gear, especially if dealing with acidic or caustic regenerants (e.g., HCl or NaOH).

2. Draining and Cleaning

Drain the resin bed: Open the drain valve or manually remove water to access the resin.
Rinse out residual water: Use low-pressure water to remove leftover debris.
Inspect the vessel: Check for corrosion, cracks, or internal damage.

3. Resin Removal

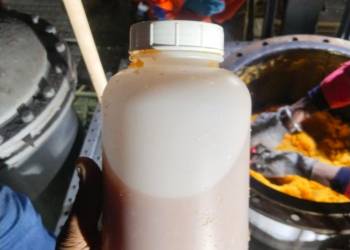

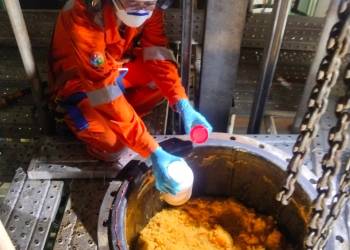

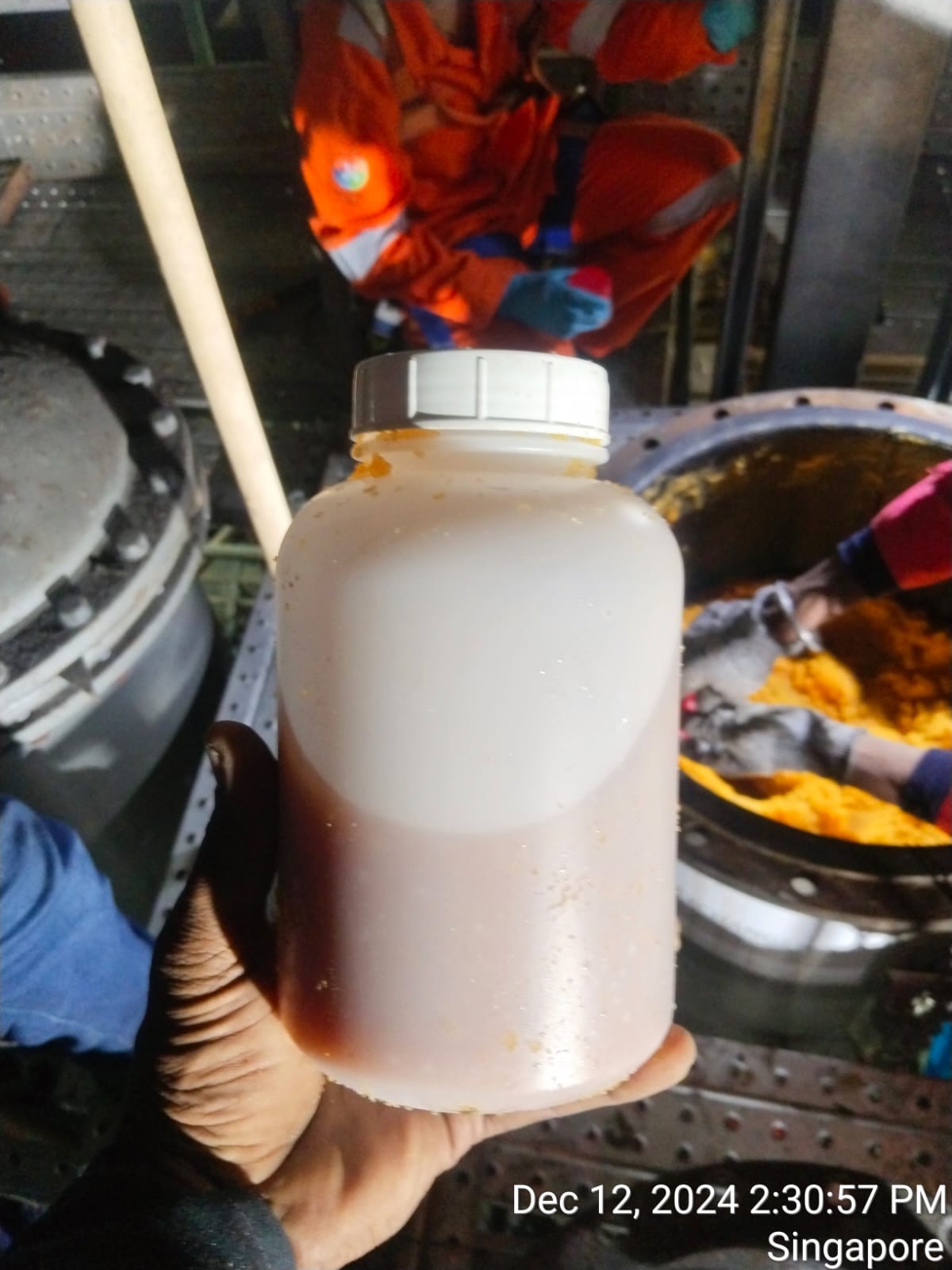

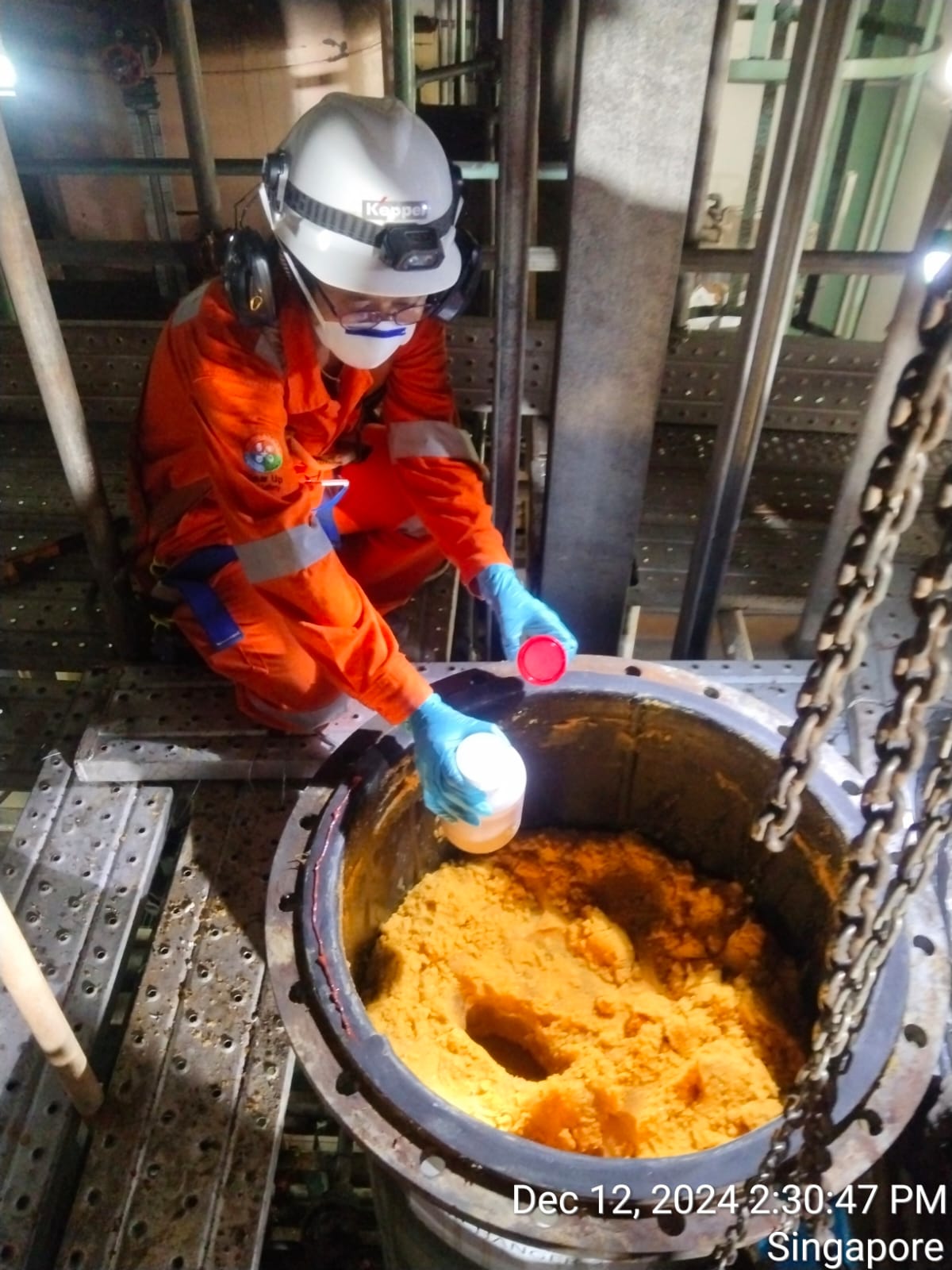

Manual removal: Scoop out the old resin with plastic tools if the system is small.
Vacuum extraction: Use an eductor or vacuum truck for larger vessels (industrial scale).
Water eductor: A water-powered vacuum can also be used to suck the resin out.

4. Vessel Cleaning

Wash down the interior: Rinse with clean water, and if fouling is present, clean with mild acid or alkali depending on the type of fouling (e.g., citric acid for iron).

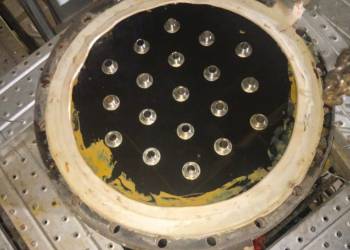

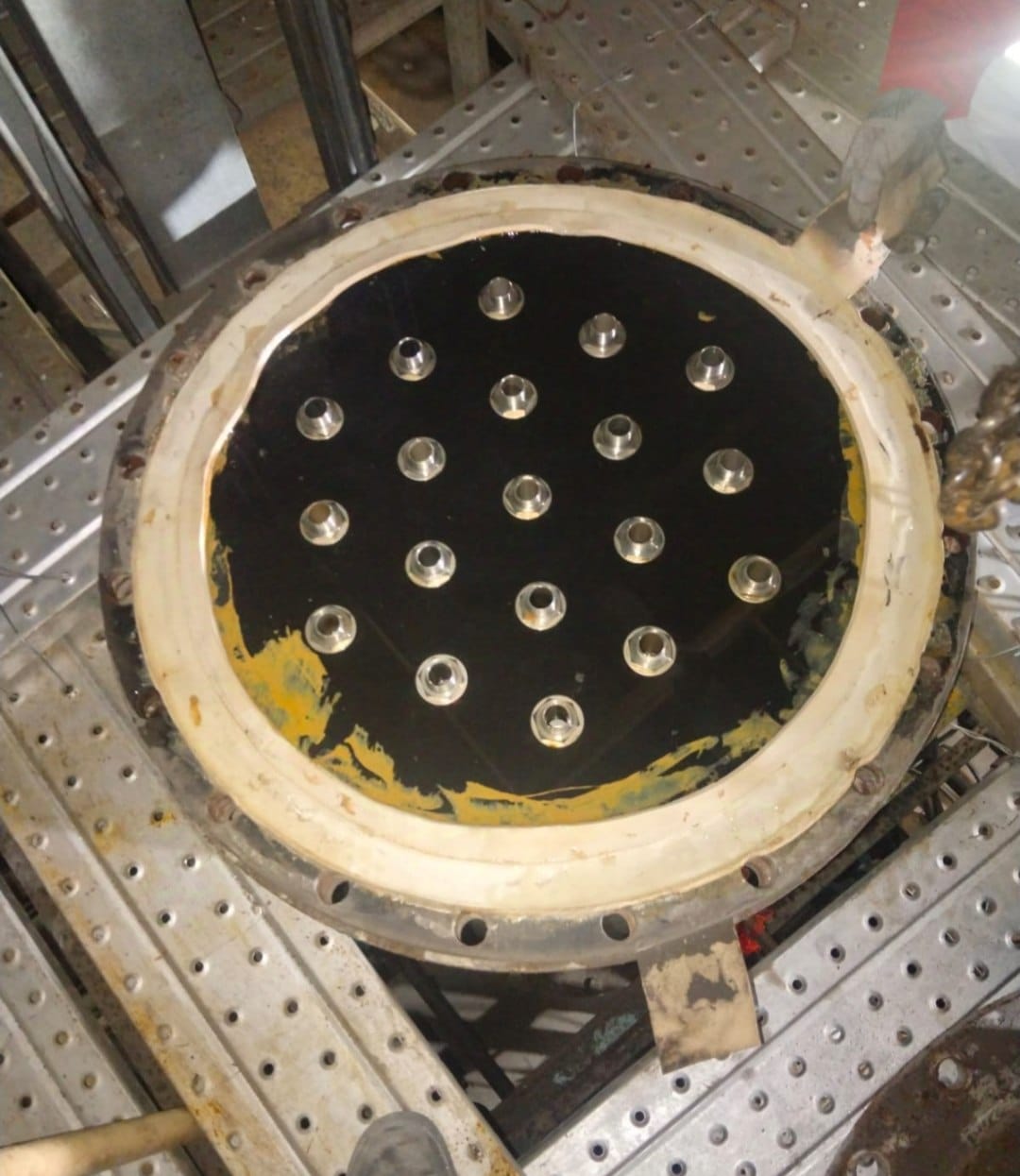

Inspect internal components: Check strainers, distributors, and underdrain for blockages or damage.

5. Loading New Resin

Check resin type: Match the correct resin grade (cation or anion) to the application.
Add water first: Fill the vessel partially with clean water to cushion the fall of the new resin beads and prevent damage.
Add resin: Pour or vacuum new resin into the vessel, ensuring even distribution.
Avoid air entrapment: Prevent air pockets by allowing the resin to settle properly.

6. Rinse and Regenerate

Initial rinse: Flush the resin bed slowly to remove fines, dust, or any manufacturing residues.
Perform regeneration: Use the standard regeneration chemical (salt for softeners, acid/base for deionizers) to prepare the resin for service.
Final rinse: Ensure all residual chemicals are flushed out until water is clear and within desired parameters.

7. Restart the System

Reconnect lines and open valves.
Check for leaks.
Resume normal operation.
Test water quality: Verify performance through conductivity, hardness, or specific ion tests depending on system use.

Challenges During Ion Exchange Resin Replacement and how World Technologies Handles that

· Perform detail Risk Assessment

· Define Method of Work Statement

· Provide Work at height and Confined Space workers

· Prefeed Pricing from Ion Exchange Resin renowned brands:

o Amberlite

o Purolite

o Lewatit

ü Access to Resin Vessels

· Tight or confined spaces make it difficult to open and work around the vessel.

· Large industrial vessels may require lifting equipment or scaffolding.

ü Resin Removal Difficulty

· Compacted resin beds or fouled resin can be hard to extract, especially if they’ve been in use for a long time.

· Vacuum systems or water eductors may be required, which need training and safety measures.

3. Handling Spent Resin

· Spent resin may be classified as hazardous waste (especially if it’s removed heavy metals or chemicals).

· We have licensed 3^rd Party Waste Disposal companies to safely dispose based on local environmental regulations.

4. System Downtime

· Replacement may require hours or even days, especially for large units.

· Extended downtime can affect water supply or production processes, so planning and coordination are crucial. Hence we plan one unit at one time.

5. Resin Compatibility

· Using the wrong resin type, mesh size, or crosslinking level can damage equipment or affect performance.

· Cross-contamination between cation and anion resins (in mixed bed systems) must be avoided.

6. Regeneration Issues

· Improper initial regeneration can result in poor resin performance or resin damage.

· Residual chemicals (e.g., acid or caustic) must be flushed thoroughly before bringing the system online.

7. Health and Safety Risks

· Exposure to dust, chemicals, or hot water during removal and cleaning.

· Risk of chemical burns, slips, or confined space hazards, we provide experienced team with Confined Space and Work at Height certification.

8. Internal Component Damage

· The resin removal process may accidentally damage distributors, strainers, or laterals, leading to resin leakage or uneven flow.

· We perform NDT and Spark test to ensure vessels are safe for usage and perform repair

10. Improper Cleaning of Vessel

If the vessel isn’t thoroughly cleaned, biofouling or old resin residue can affect the performance of the new resin. Hence we use proper jet pressure method to clean the vessels.
